Silicon nanocrystals in silicon oxide matrix for passivating contacts in crystalline silicon solar cells







   We report on our recent progress in development of the NAnocrystalline Transport Path in Ultra-thin dielectrics for Reinforced passivation (NATURE) contact, which could simultaneously achieve high passivation performance, low contact resistance, and long-term reliability for various devices including solar cells [1]. The NATURE contact consists of silicon nanocrystals embedded in amorphous silicon oxide matrix. The silicon nanocrystals act as carrier transport pathways, which leads to a low contact resistance.

   Figure 1 shows a cross-sectional transmission electron microscope (TEM) image of a NATURE contact, and the inset is the electron diffraction pattern of a Si-NC in its SiOx layer. Fringes were observed in the locations indicated by a white circle. From the diffraction pattern, the lattice spacing was calculated as 3.12 Å, which is close to that of Si(111), proving that Si-NCs are formed in the SiOx. The amorphous silicon oxide and additional post treatment to introduce hydrogen atoms could chemically passivate the heterointerface to result in high passivation performance. Figure 2 shows the effective lifetime (τeff) of NATURE contact samples before and after hydrogen plasma treatment (HPT) as a function of minority carrier density (MCD). The maximum τeff increased from 524 μs to 1437 μs after HPT, indicating improved passivation performance. Furthermore, reasonably low specific contact resistance of 25~28 mΩ·cm2 was obtained after HPT. Thus, the NATURE contact can simultaneously realize high passivation performance and low specific contact resistance.



































































References

[1] R. Gong, L. Zheng, P. Roca i Cabarrocas, W. Chen, physica status solidi (RRL) – Rapid Research Letters, 16 (2022) 2100554.

[2] L. Zheng, E. Azrak, R. Gong, C. Castro, S. Duguay, P. Pareige, P. Roca i Cabarrocas, W. Chen, Journal of Alloys and Compounds, 899 (2022) 163273.

[3] E. Azrak, W. Chen, S. Moldovan, S. Gao, S. Duguay, P. Pareige, P. Roca i Cabarrocas, The Journal of Physical Chemistry C, 122 (2018) 26236-26242.

[4] E. Azrak, W. Chen, S. Moldovan, S. Duguay, P. Pareige, P. Roca i Cabarrocas, The Journal of Physical Chemistry C, 124 (2020) 1220-1226.

[5] R. Gong, E. Azrak, C. Castro, S. Duguay, P. Pareige, P. Roca i Cabarrocas, W. Chen, Nanotechnology, 32 (2021) 345602.

[6] R. Cariou, W. Chen, I. Cosme-Bolanos, J.-L. Maurice, M. Foldyna, V. Depauw, G. Patriarche, A. Gaucher, A. Cattoni, I. Massiot, S. Collin, E. Cadel, P. Pareige, P. Roca i Cabarrocas, Progress in Photovoltaics: Research and Applications, 24 (2016) 1075-1084.

[7] J. An, Z. Zheng, R. Gong, T.B.T. Nguyen, H. Jun, M. Chrostowki, J.-L. Maurice, W. Chen, P. Roca i Cabarrocas, Applied Surface Science, 518 (2020) 146057.

[8] J. An, J.-L. Maurice, V. Depauw, P. Roca i Cabarrocas, W. Chen, Applied Surface Science, 546 (2021) 149056.

[9] W. Chen, R. Cariou, G. Hamon, R. Léal, J.-L. Maurice, P. Roca i Cabarrocas, Scientific Reports, 7 (2017) 43968.

[10] W. Chen, J.-L. Maurice, J.-C. Vanel, P. Roca i Cabarrocas, Journal of Physics D: Applied Physics, 51 (2018) 235203.

[11] W. Chen, G. Hamon, R. Léal, J.-L. Maurice, L. Largeau, P. Roca i Cabarrocas, Crystal Growth & Design, 17 (2017) 4265-4269.



Figure 1. Cross-sectional TEM image of the NATURE contact. The inset is the electron diffraction pattern of a Si-NC in the SiOx layer.

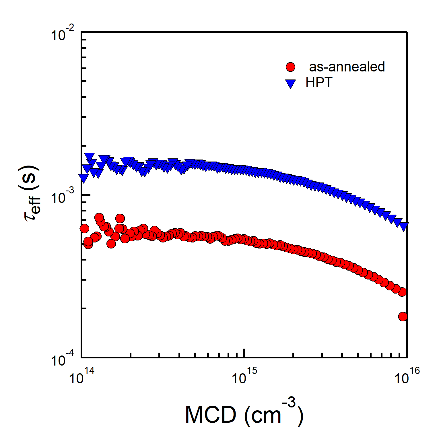

Figure 2. Effective lifetime before and after hydrogen plasma treatment as a function of MCD.
